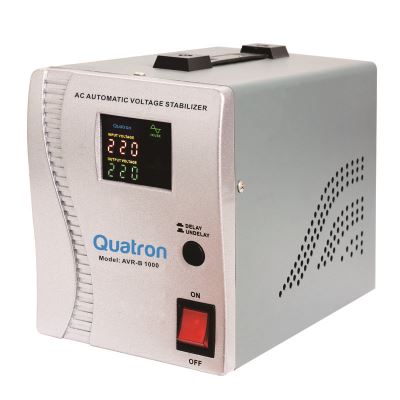

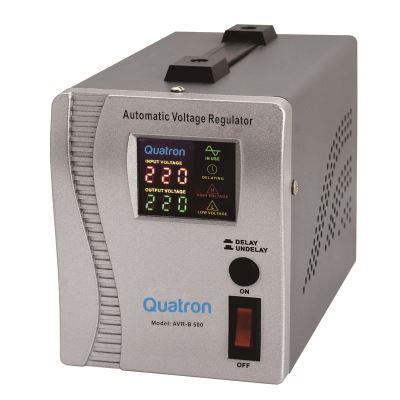

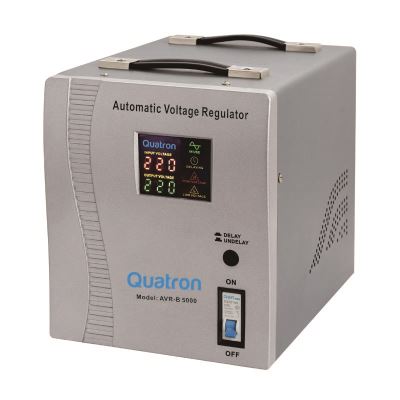

• AVR-B Series (500VA-5000VA) Type of the products:Relay Type AVR
    ZoomReservation

Product features

● Colorful LED-based graphic display.

● CPU based control circuit.

● Zero cross transfer technology.

● High Efficiency C.R.G.O. transformer or EI transformer.

● High voltage protection.

● Low voltage protection.

● Transformer overheat protection.

● Short circuit protection.

● Optional overload protection.

● Selectable 6s/180s delay time.
Product Parameter
 Model No.
 AVR-B 500 AVR-B 1000 AVR-B 1500 AVR-B 2000 AVR-B 3000 AVR-B 5000
 Power Capacity

500VA/

300W

1000VA/

600W

1500VA/

900W

2000VA/

1200W

3000VA/

1800W

5000VA/

3000W

 Technology CPU based circuit + Zero cross transfer technology
 Input
  Input Voltage 140-260V/120-260V/100-260V or 80-140V
 Input Frequency 50/60Hz auto sensing
 Output  Rated Output Voltage 220V/230V or 110V/120V
 Output Voltage Precision ±8% / ±10%
 Output Frequency Same as input frequency
 Efficiency
 >95%
 Colorful Display (Graphic LED or LCD) Input voltage, Output voltage, Power on (In use),  Delaying, Protecting (Unusual), Overheat
 Protection  High Voltage Yes
 Low Voltage Yes
 Overheat Yes
 Overload Optional
 Short Circuit Yes, fuse or circuit breaker
 Delay Time 6s/180s selectable
 Operating Condition  Operating Temperature
 0°C - 40°C
 Storage Temperature
 -15°C - +45°C
 Operating Humidity <90%, non-condensing
 Packing
  Machine Size (WxHxD) 120x155x240 mm 140x180x265 mm
 220x270x330 mm
 Weight (EI transformer) 3.5kgs 4.4kgs 5.6kgs 6.5kgs 11.5kgs 15.5kgs
